# Demo示例

# demo-1 视图锚点（anchor）

# 需求

在表单视图上点击表格（主表区域、明细表）后跳转至对应位置。

# 分析与解决

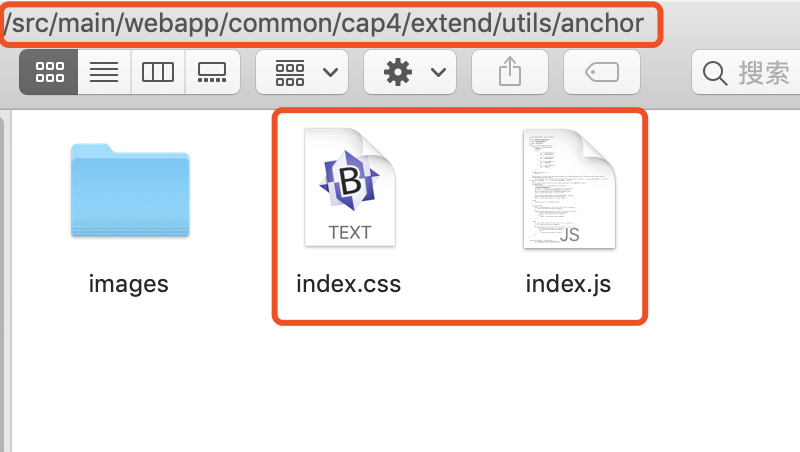

1.添加anchor插件目录及资源

[注]7.1SP1 930版本前的表单插件路径为/seeyon/common/cap4/extend

2.脚本实现

//添加表单渲染完成和视图渲染完成事件
var removereadyAnchorFun = csdk.event.on("formRendered", readyAnchorFun);
var removeViewChangeAnchorFun  = csdk.event.on("viewRenderd", viewChangeAnchorFun);
function readyAnchorFun(){
 var metaData = csdk.core.getMetaData();
 var formId = metaData.contentTemplateId;
 var viewId = metaData.viewId;
 callBackendMethod("anchorPointSettingManager","findAnchorPointSettingbyViewIdFormId",formId,viewId,{
  success : function(returnList){
   if(window.parent.location.href.indexOf("summary") >= 0 ){
    summaryFlag = true;
   }
   anchorPointRender(returnList);
        },
        error : function(request, settings, e){
            $.alert(e);
        }
 });
}
function viewChangeAnchorFun(){
 if(summaryFlag){
  top.$(".anchor-point-wrap").remove();
  top.$(".anchor-point-wrap").remove();
 }else{
  $(".anchor-point-wrap").remove();
  $(".anchor-point-wrap").remove();
 }
 readyAnchorFun();
}
function anchorPointRender(tables) {
    if("array" !== $.type(tables) || !tables.length) {
        return;
    }
    var tplArray = ['<div class="anchor-point-wrap"><div class="ap-content"><div class="ap-content-top"></div>'];
    tables.forEach(function(item) {
        tplArray.push('<div class="ap-item" onclick="scrollAnchor(this)" data-id="' + item.fromTableName + '" title="' + item.anchorPointName + '">' + item.anchorPointName + '</div>');
    });
    tplArray.push('</div></div><div class="anchor-point-pos" title="锚点列表"></div>');
    if(summaryFlag){
     $(tplArray.join('')).appendTo(parent.$("body"));
     //处理锚点悬浮按钮位置
     var bottom =  parseInt(top.$("#goToReply").css("bottom"));
     var left =  parseInt(top.$("#goToReply").css("left"));
     top.$(".anchor-point-pos").css("bottom",bottom + 82);
     top.$(".anchor-point-pos").css("left",left);
     //处理锚点列表位置
     top.$(".anchor-point-wrap").css("bottom",bottom + 82 +38);
     top.$(".anchor-point-wrap").css("left",left);
     top.$(".anchor-point-wrap").css("right","auto");

    }else{
     $(tplArray.join('')).appendTo('body');
    }
}

3.样式实现

.anchor-point-wrap {
    position: fixed;
    border-top: 5px solid #1F85EC;
    bottom: 100px;
    right: 1px;
    box-shadow: 1px 1px 10px 1px rgba(0, 0, 0, 0.3);
    z-index:10;
    background-color: #fff
}
.anchor-point-wrap.hide {
    display: none;
}
.anchor-point-wrap .ap-content {
    min-width: 50px;
    max-width: 136px;
    padding: 20px 0 10px;
}
.ap-content-top {
    position: absolute;
    top: 1px;
    right: 0;
    width: 20px;
    height: 20px;
    cursor: pointer;
    background: url(images/custom-modal-min.png) no-repeat right center;
}
.ap-content .ap-item {
    height: 30px;
    line-height: 30px;
    padding: 0 10px;
    overflow: hidden;
    white-space: nowrap;
    text-overflow: ellipsis;
}
.ap-content .ap-item:hover {
    cursor: pointer;
    background-color: #D1E8FD;
}

.ap-content .selected-item {
    background-color: #D1E8FD;
}

.anchor-point-pos {
    position: fixed;
    width: 36px;
    height: 36px;
    bottom: 60px;
    right: 40px;
    cursor: pointer;
    z-index: 2;
    border-radius: 50%;
    background: url(images/custom-pos.png) no-repeat center center;
}
.anchor-point-pos:hover {
    background: url(images/custom-pos-hover.png) no-repeat center center;
}

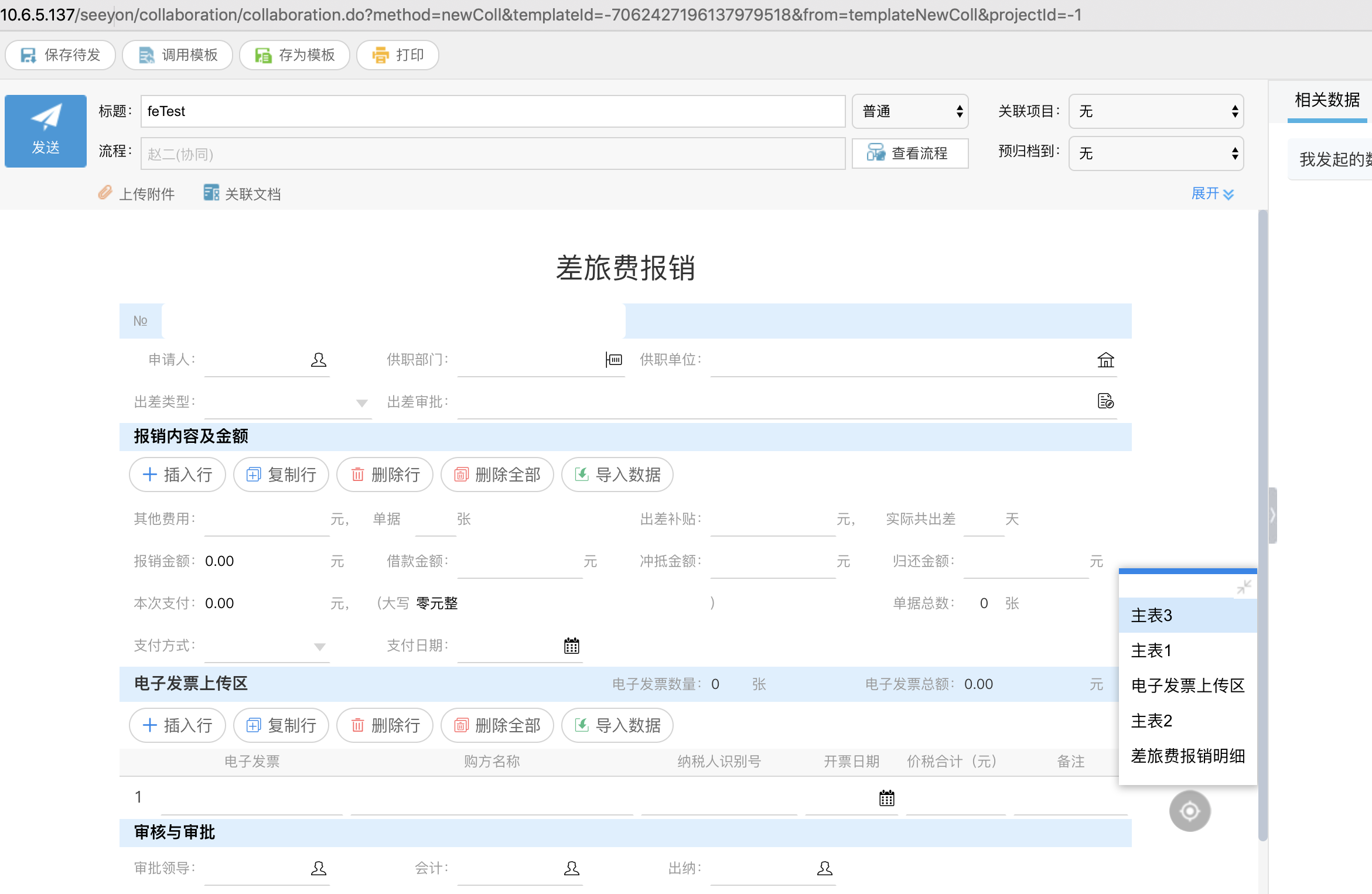

# 效果

# demo-2 带条件隐藏明细表列

# 需求

根据不同的条件隐藏某个明细表的指定列。

# 分析与解决

1.添加插件目录及资源

同demo1，在utils目录下添加columnHidden目录;由于不需要额外的样式实现，故只需添加脚本index.js

2.脚本实现

var filedChangeArray; //参与设计态隐藏行或者列的条件字段数组
var readyFun = function () {
    var pageDataObj = csdk.core.getFormData().metaData;
    filedChangeArray = pageDataObj.extend.conditionHidden.condtionSet;
    var handlerFun = function (fieldArray) {
        for (var m = 0; m < fieldArray.length; m++) {
            var fieldObj = fieldArray[m];
            var fieldId = fieldObj.id;
            var isCaculate = fieldObj.isInCalculate;
            if (isCaculate == "1") {
                return; //只要含有计算字段  cap4会合并缓存 同事拿隐藏规则进行隐藏 不需要客开再次处理
            }
        }
        for (var m = 0; m < fieldArray.length; m++) {
            var fieldObj = fieldArray[m];
            var fieldId = fieldObj.id;
            var index = $.inArray(fieldId, filedChangeArray);
            if (index >= 0) {
                //1:合并缓存 2：ajax请求设计态该视图下设置的的数据
                var transData = csdk.core.getSubmitData();
                var transObj = new Object();
                var metaData = csdk.core.getMetaData();
                transObj.formId = metaData.contentTemplateId;
                transObj.viewId = metaData.viewId;
                transObj.formMasterId = metaData.contentDataId;
                transObj.rightId = metaData.rightId;
                transObj.platForm = "pc";
                var returnMap = callBackendMethod("capExtendManager", "executeHidden", transObj, transData);
                filedChangeArray = returnMap.condtionSet;
                var transObj = {
                    "hiddenResult": returnMap.hiddenResult
                }
                csdk.core.backfillTableAuth(transObj);
                break;
            }
        }
    };
    //字段值改变事件
    var removeFieldChangeFun = csdk.event.on("fieldChanged", handlerFun);
};

//渲染完成事件
var removeRederFun = csdk.event.on("formRendered", readyFun);
//切换视图事件
function viewChangeFun() {
    var pageDataObj = csdk.core.getFormData().metaData;
    filedChangeArray = pageDataObj.extend.conditionHidden.condtionSet;
}
var removeViewChangeFun = csdk.event.on("viewRenderd", viewChangeFun);

# 示例源码下载

[附件][[源码下载|path:../../../code/demo-plugin.zip]]

编撰人：yinyanting
